CHASSIS & DIMENSIONS

• Fully transportable & road registrable. Each tiny house has a VIN number.

• Built on a durable 5m x 2.5m (excluding removable drawbar length), galvanized, heavy duty trailer chassis

• High end Al-Ko axles

• House Length: 5m

• House Width: 2.5m

• Height: 4.3m

• Weight: 2.85-3 tonne (towable with many 4WDs)

• Living Space: 14 square metres

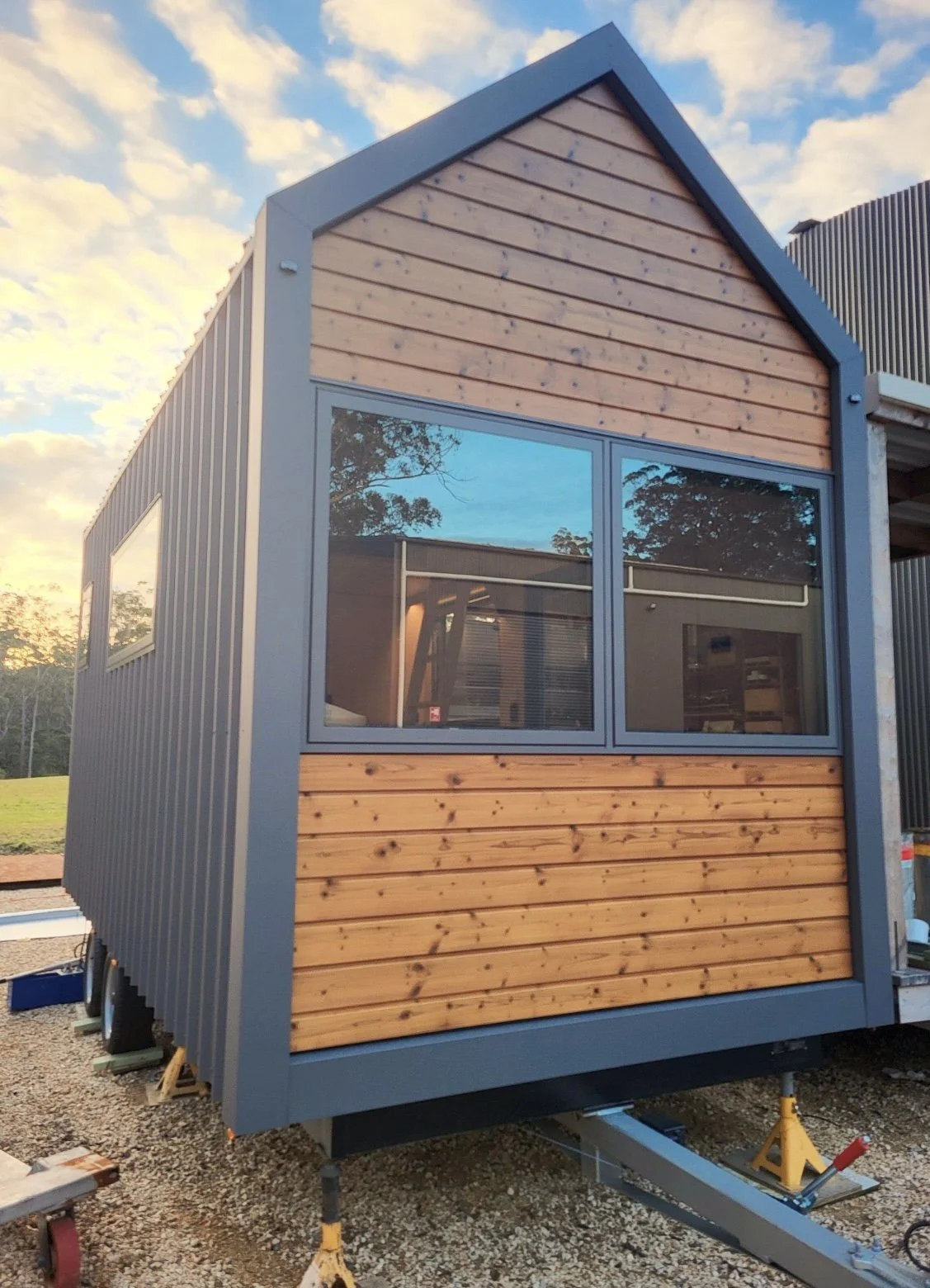

BUILDING MATERIALS

• Steel Frames

• Trimdeck Cladding Basalt Matt

• Lunawood Timber Exterior Cladding finished with Marine Varnish

• Tempered glass premium aluminium framed windows Basalt Matt

• Flyscreens on all windows

• Walls, ceiling and floors insulated with fibreglass earth wool (R2) & silver sarking

• Premium birch ply lining boards with light whitewash finish

• Aluminium & glass single front door

• Premium engineered timber oak flooring

• American Oak benches with natural hard wax oil finish (made in UK)

• High quality, wool carpeting in loft - charcoal colour

• Solid premium cabinetry ply in the kitchen & bathroom

• Soft-close drawers and cupboards

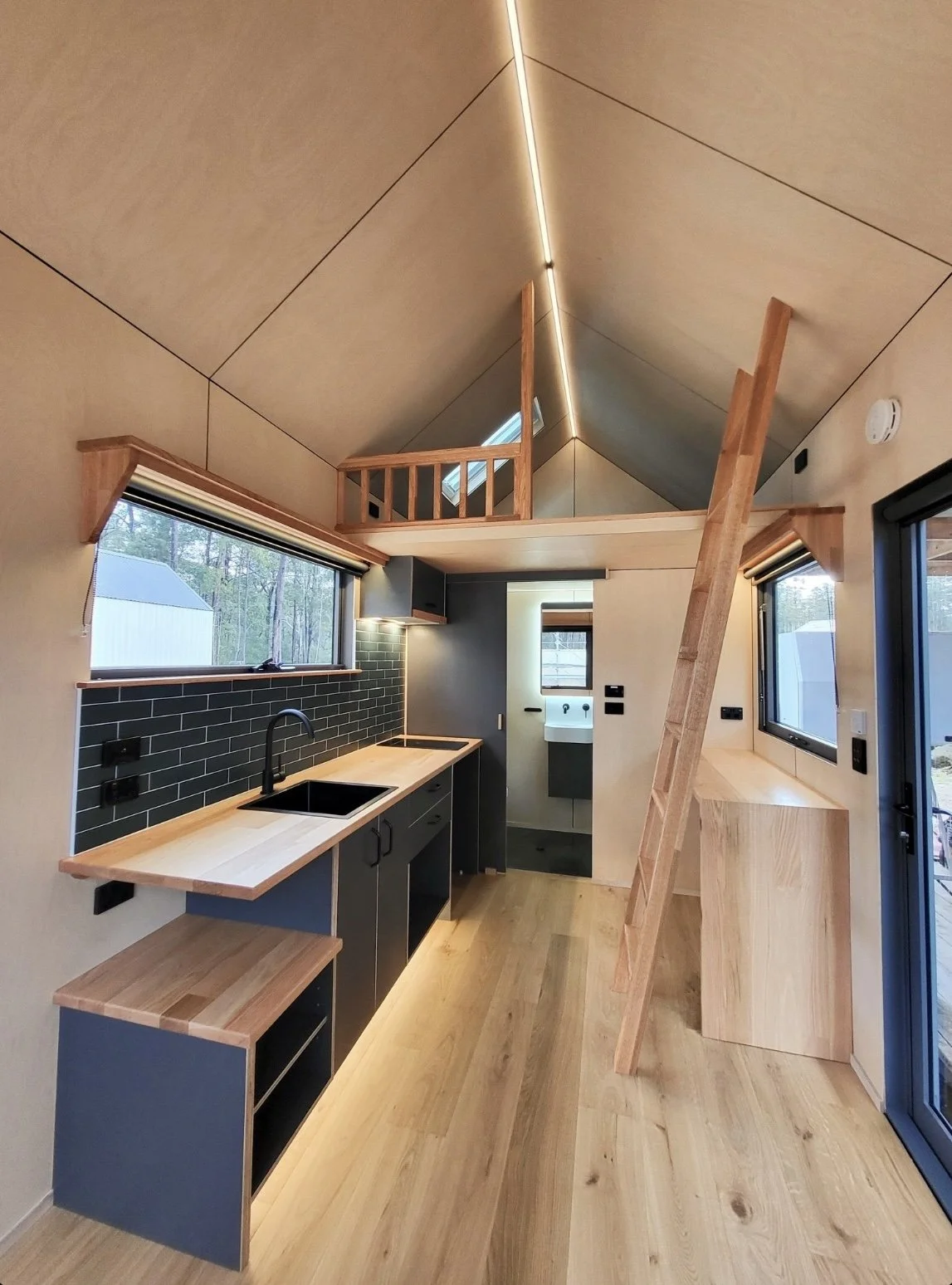

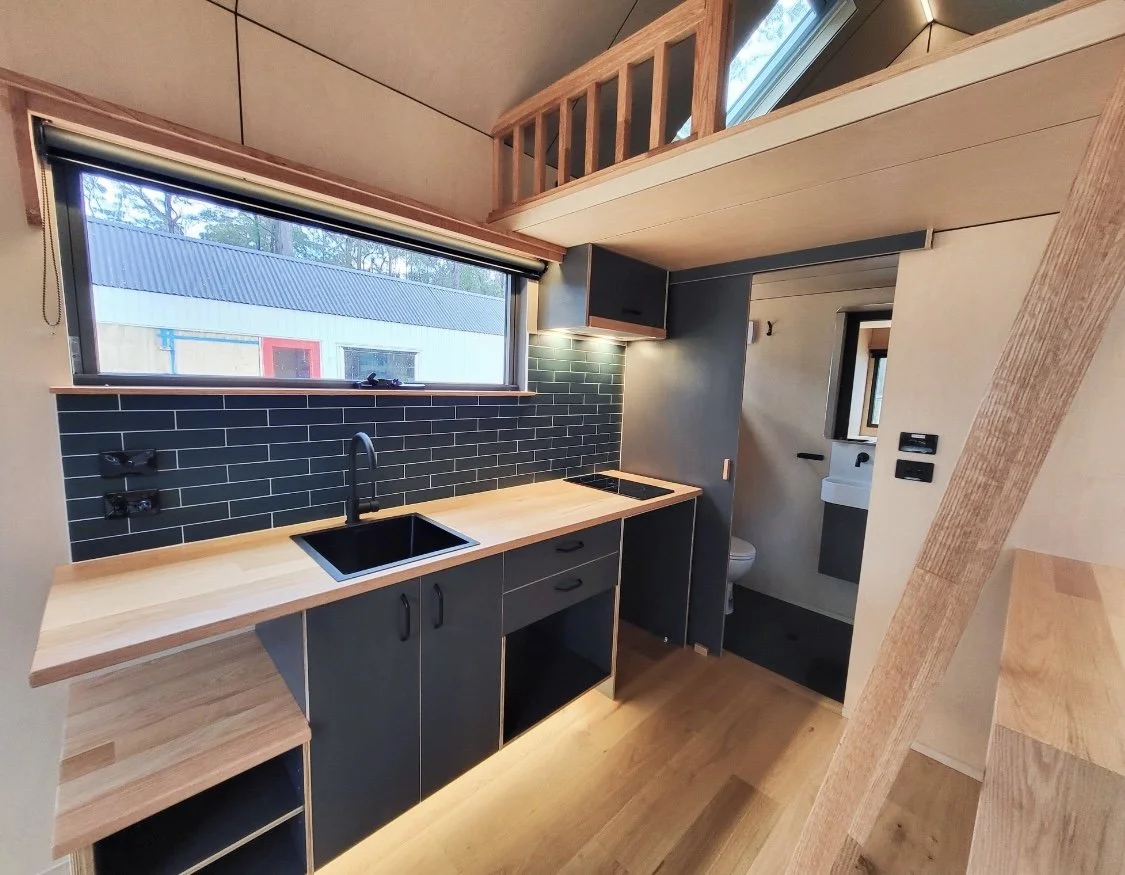

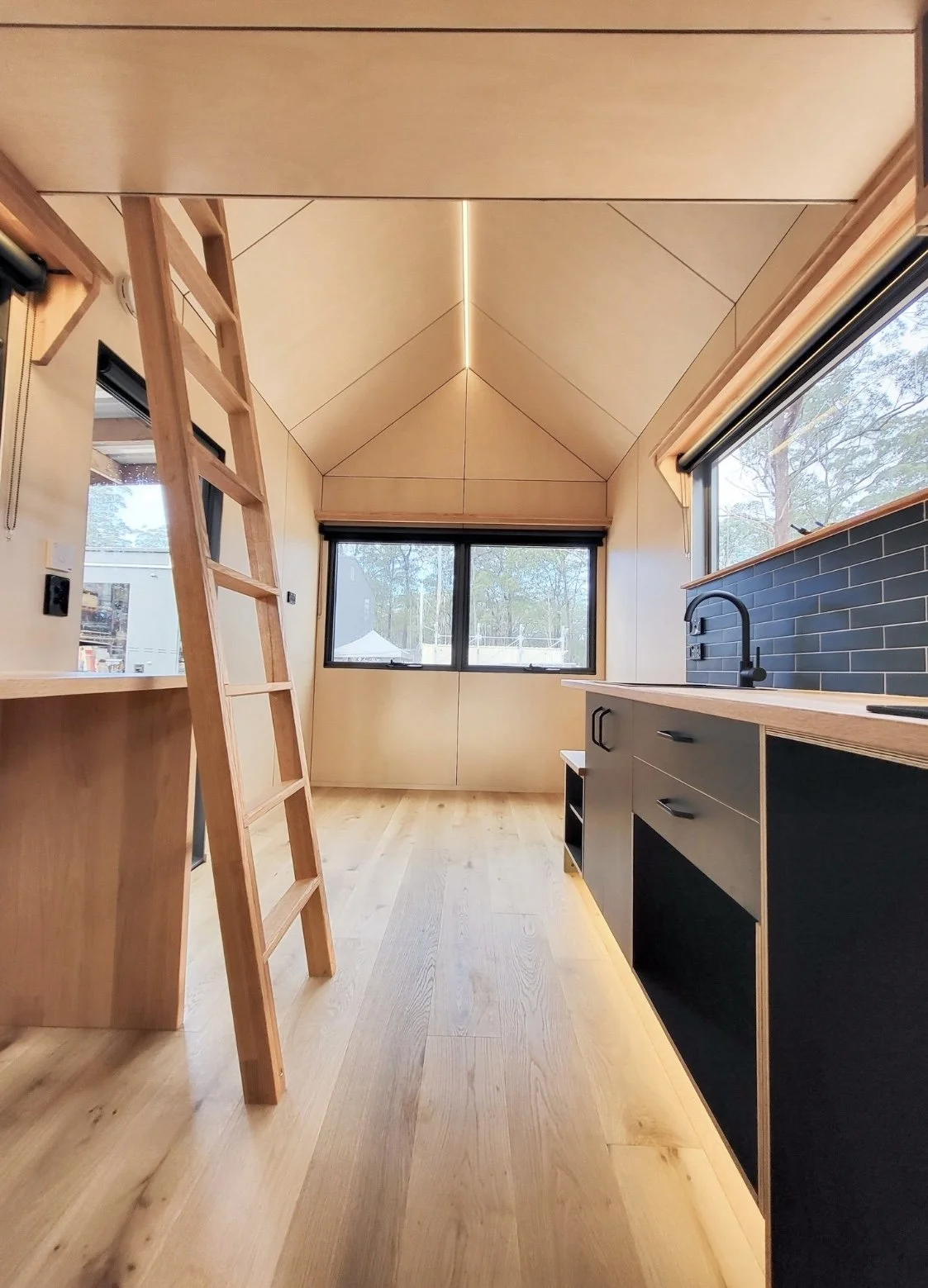

KITCHEN

• Built-In 30cm 2-Burner Induction Cooktop

• Black stainless kitchen sink & clever in-sink drainer

• Space for drawer dishwasher

• Space for bar fridge

• High quality, modern black fixtures (tapware)

• Under-sink pull out bin

• Breakfast bar with awning window

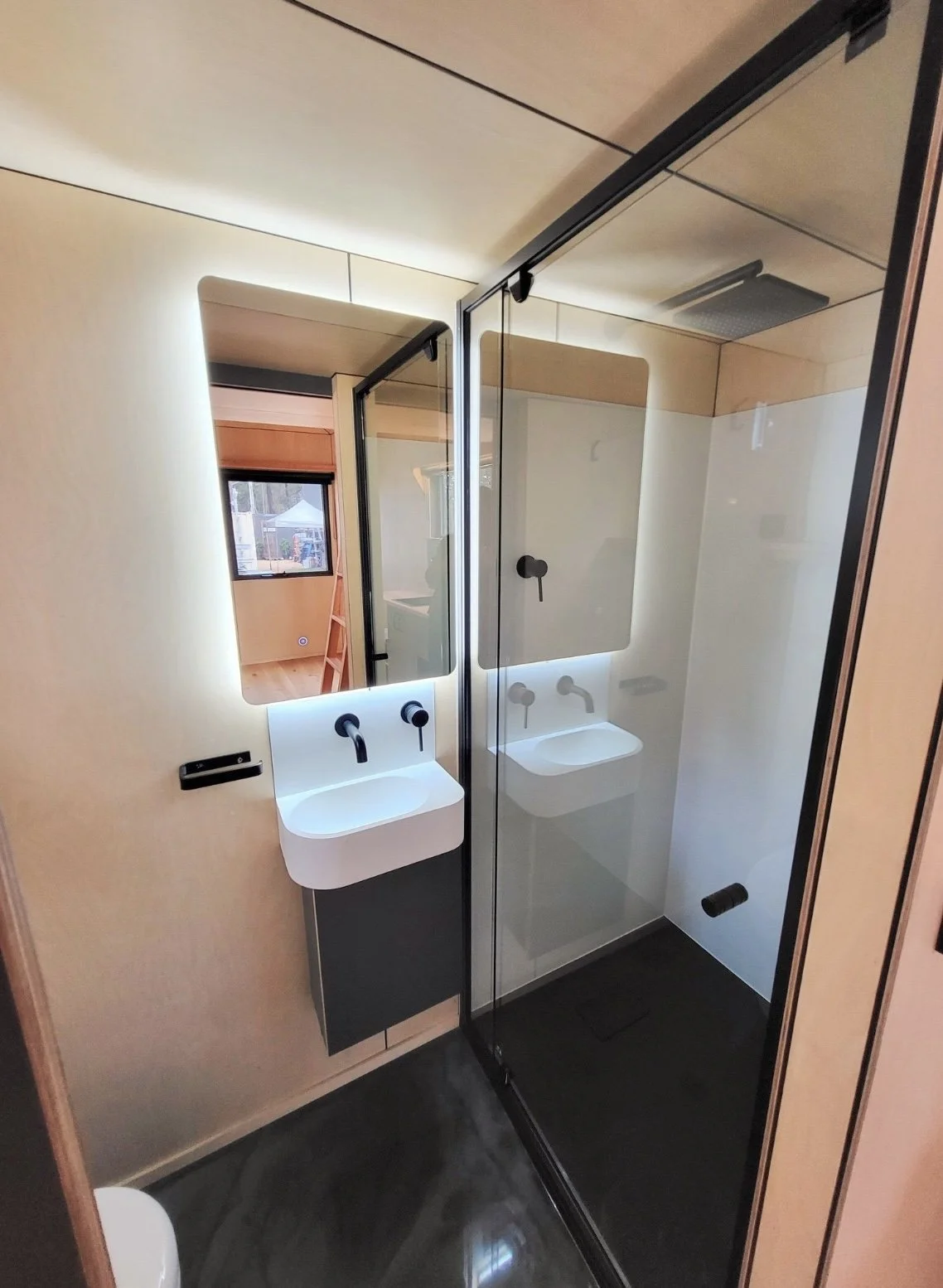

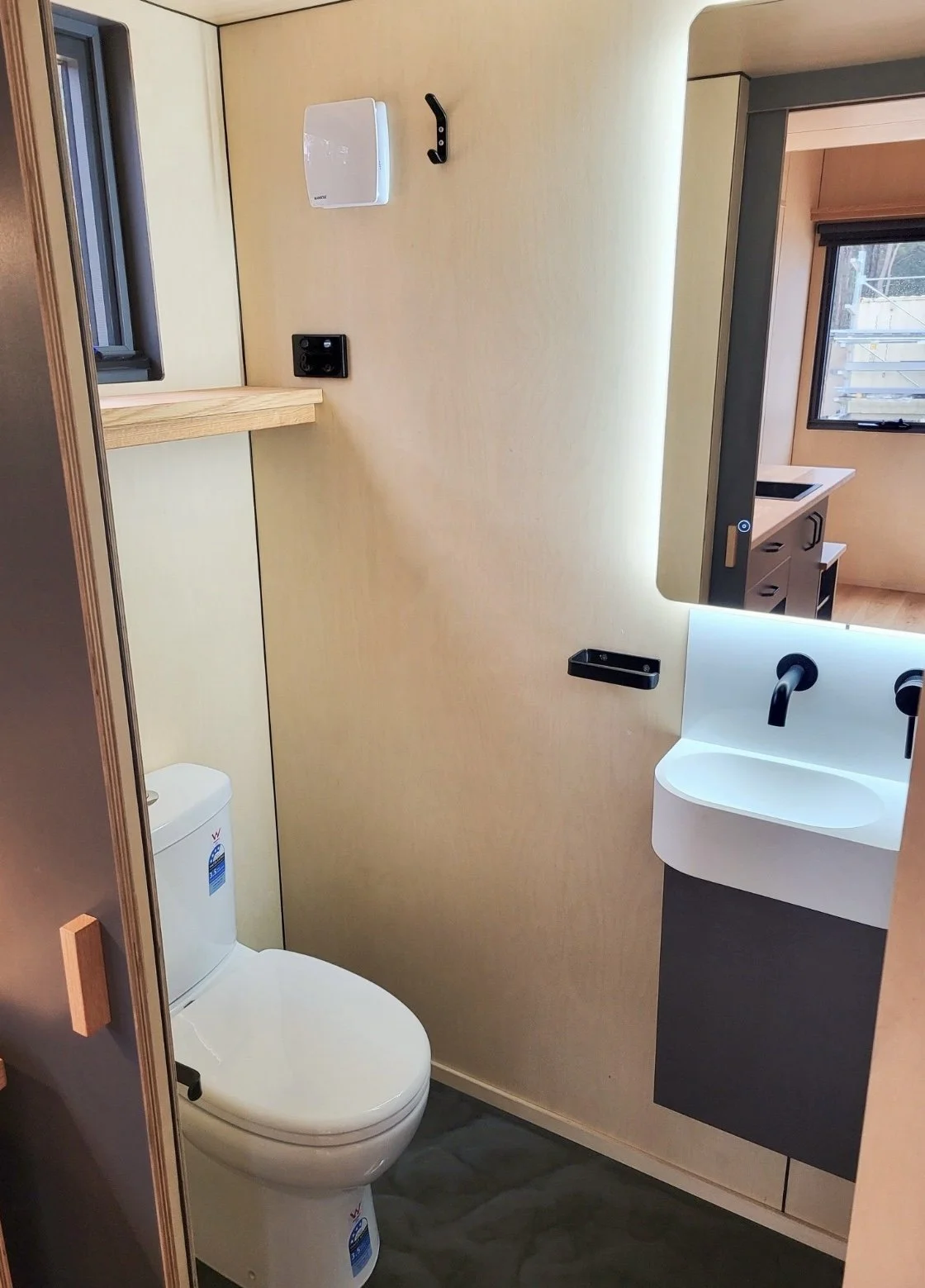

BATHROOM/LAUNDRY

• Traditional flush toilet – option to omit if you plan on an off-grid toilet system.

• 900m x 900mm shower with glass door

• Vanity unit with man-made composite stone basin

• High quality, modern black fixtures (tapware)

• Extraction fan

• Shelf above toilet

• LED backlit mirror

• Epoxy bathroom floor

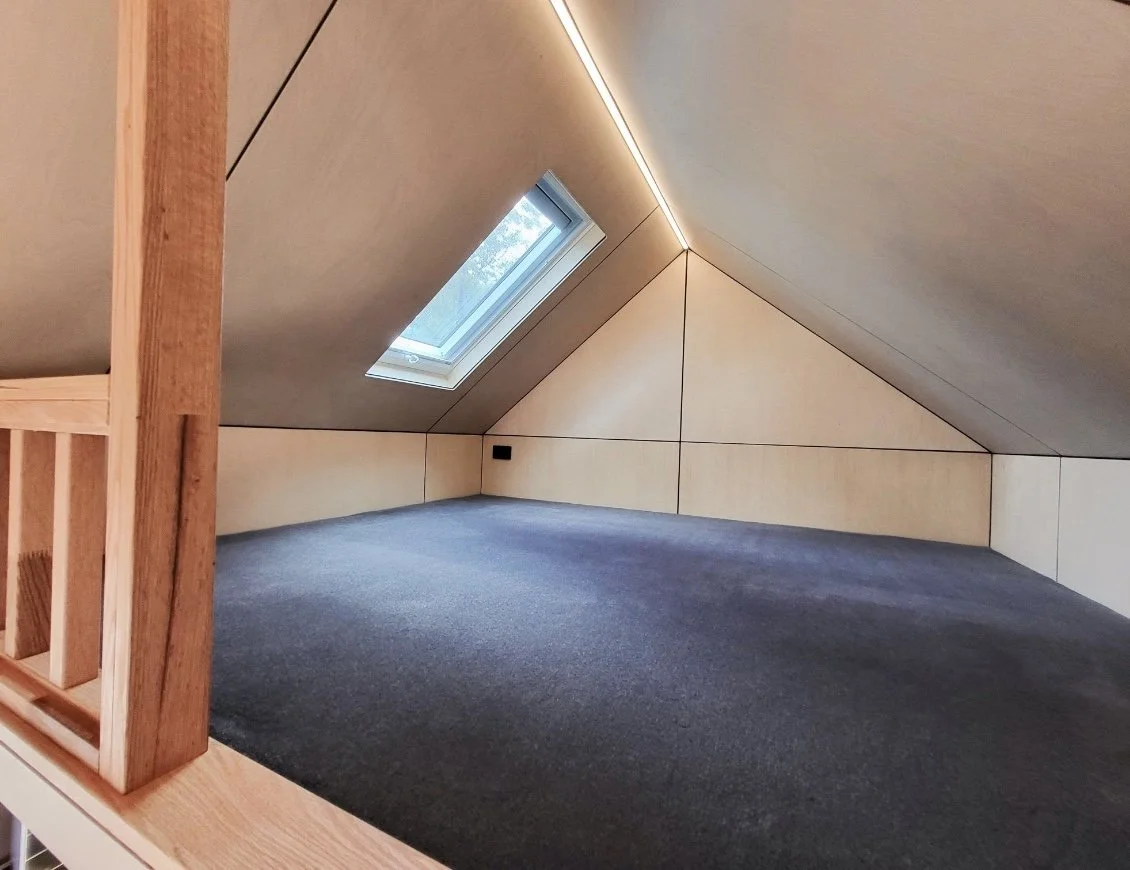

BEDROOM

• Space for Queen Size Mattress

• Skylight

LIVING/LOUNGE

(Layout 1)

• Space for 2 or 3 seater couch

• Space for TV on wall bracket

• Space for small side table

(Layout 2)

• Bed base for queen size mattress

• Spacious storage drawers

• Space for TV on wall bracket at end of bed

ELECTRICAL & PLUMBING

• Space for optional reverse cycle Air conditioning at additional cost

• Modern black light fittings

• Black powerpoints & light switches

• Simple 240v, 15 amp plug in point for power connection, same as a caravan

• 25mm (or 1inch) screw on fitting to connect tiny house to water supply

• 25L Dux electric hot water system

• All waste water plumbing plumbed to single point below bathroom

• Smoke & carbon monoxide detector fitted

• Fire extinguisher supplied

STRUCTURAL OPTIONS

• None

CURTAINS & BLINDS

• Custom blinds, installed

CLIMATE & CONVENIENCE OPTIONS

• Efficient Panasonic reverse cycle heating and air conditioning

APPLIANCE OPTIONS

We have researched and can recommend appliances based on sizes to suit tiny house models, quality brands and energy efficiency, as well as trusted suppliers we have used which service most areas. Some of our favourite appliances include:

• Fisher & Paykel DishDrawer Dishwasher →

FURNITURE OPTIONS

• Hand crafted cypress pine feature bathroom basin

OFF GRID OPTIONS

• Solar is best sourced locally for the purpose of any troubleshooting and/or install and maintenance advice.

• Composting toilet (we recommend GreenLoo and NatureLoo/EcoFlo)

• Incinerator toilet (we recommend Cinderella)

• Water tank and pump setup usually best sourced locally to save on transport costs. Where possible we recommend water catchment from a nearby shed or house with larger roof space than the tiny house as the tiny house roof is generally too small a catchment area to sustain long term living water needs.

OUTDOOR OPTIONS

• Deck Trailer (we are able to supply a trailer for you to DIY build a deck and awning onto if you would like it to be relocatable)

• Entrance steps

• Exterior cedar marine varnish

DELIVERY

• Self pick up is free.

• Request a Delivery quote for exact costings to have your tiny house delivered, or Contact us!

*All prices are subject to change.

INSTALLATION

• The installation service involves the supply & installation of a pier & tie-down system with individually adjustable piers for precise levelling and stabilising of your tiny house on a relatively level site.

• You will need to clear area for the tiny house with concrete slab, concrete piers or compacted gravel or crusher dust.

• We will also run you through the process/options we’re aware of, of anything else you may need to have set up.

• Request a quote for exact costings to have your tiny house installed.

*All prices are subject to change.
